Scullery sinks

STL2472R-1 Service 14 ga, right dboard

253.0221.232

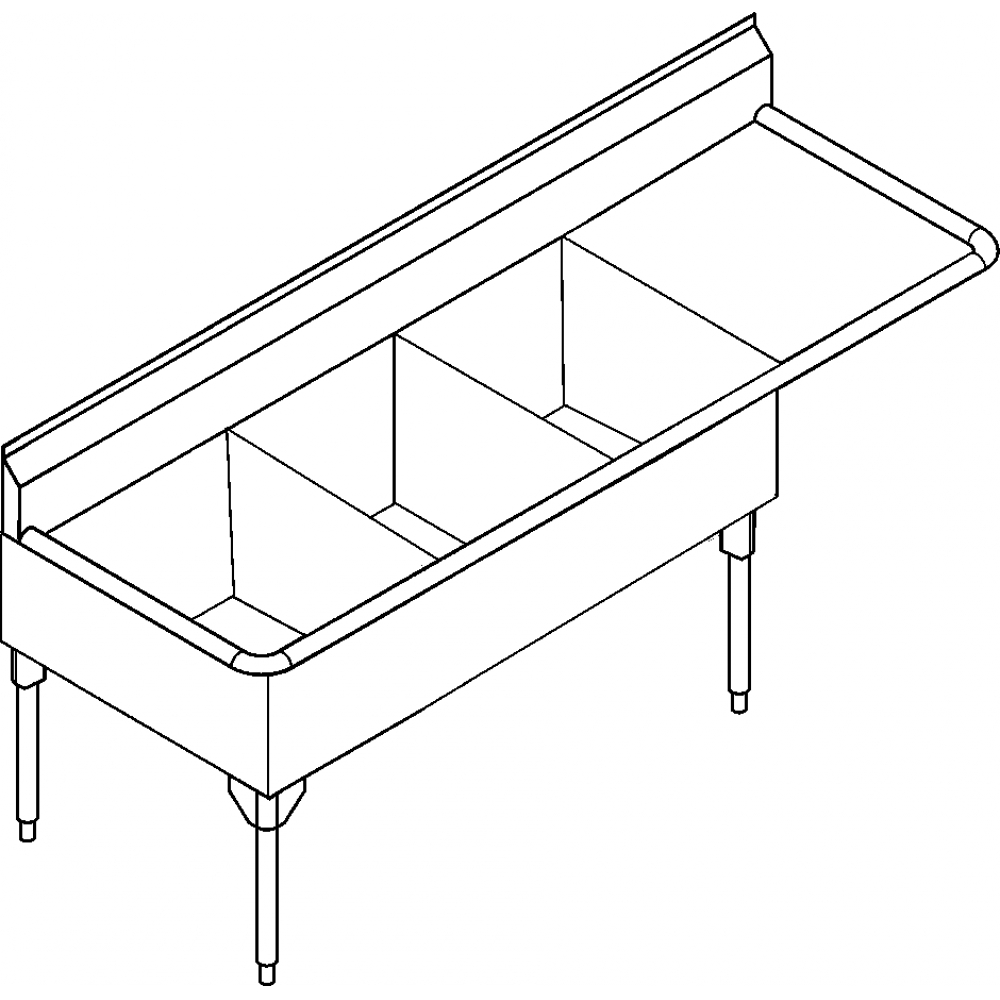

Triple compartment "Service Series" scullery sink. These sculleries are free standing scullery sinks fabricated from heavy 14 gauge (2.0 mm) type 304 (CNS 18/10) stainless steel. Polished to a #4 satin finish. Finished with a rolled rim. Compartments have radius corners on front and back of bowl. Left or right drainboard sloped toward bowl. Stainless steel tubular legs with adjustable feet for leveling. Waste fitting included. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Please allow 4 weeks for delivery. This series of scullery sinks are built to order and are non-returnable. With right side drainboard. Centre waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece. Model Options: STL2472R-1-2, 2 faucet holes, 1 1/4" diameter, 8" centerset. STL2472R-1, Custom (non-returnable). 30 1/2 x 104 1/4" Overall. 24 x 24 x 14" Bowl. (FB x LR x D). 775 x 2648 mm Overall. 610 x 610 x 356 mm Bowl. (FB x LR x D).

Product Information

Features

Bowl construction Radius coved front and back
Drainboard Right
Waste assembly Included
Waste fitting Crumb cup waste assembly

Product Dimensions

Overall front to back 30.512 "
Overall left to right 104.252 "
Overall height 44.055 "
Floor to rim height 35.039 "
Bowl dimension front to back 24.016 "
Bowl dimension left to right 24.016 "
Bowl depth 14.016 "

Installation

Installation type On legs

Product identification

Model STL2472R-1
Product brand FRANKE
Product category Scullery sinks
Scullery sink type Service series

Product specifications

Gauge 14
Tailpiece diameter (in) 1 1/2" (38mm)
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 3
Splash location Back
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center
Waste size 3 1/2" (89mm)

Downloads

Product Sheet PDF
